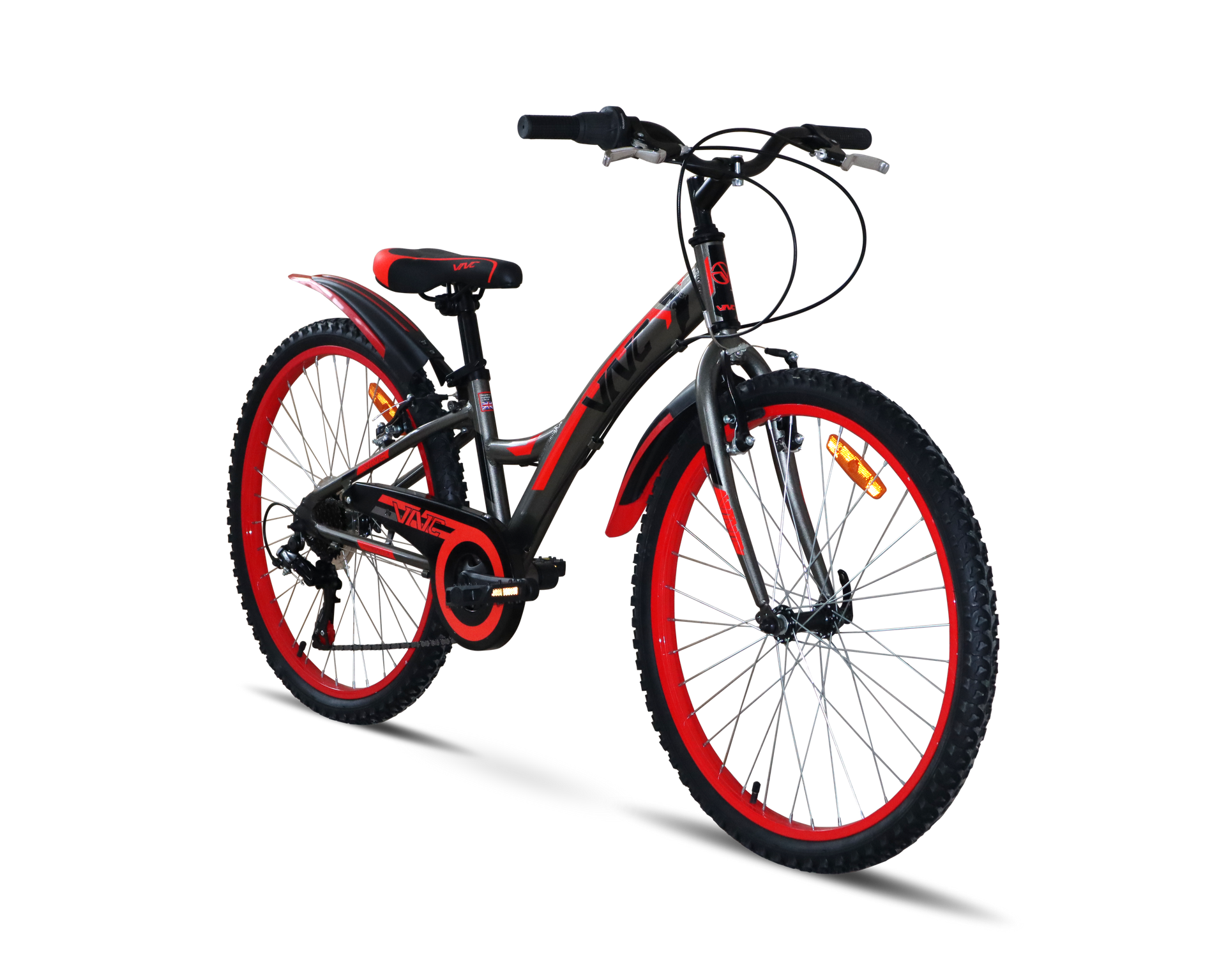

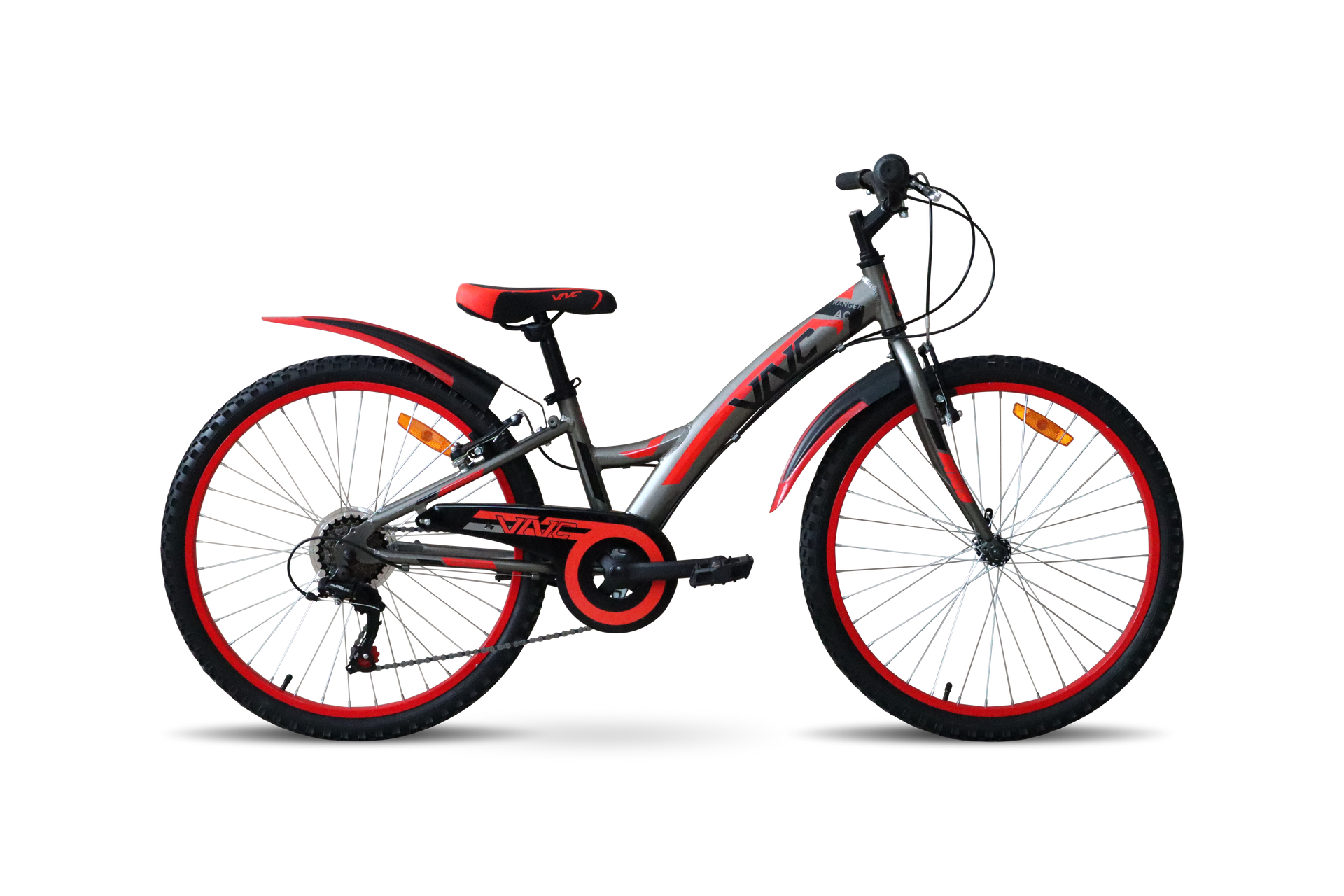

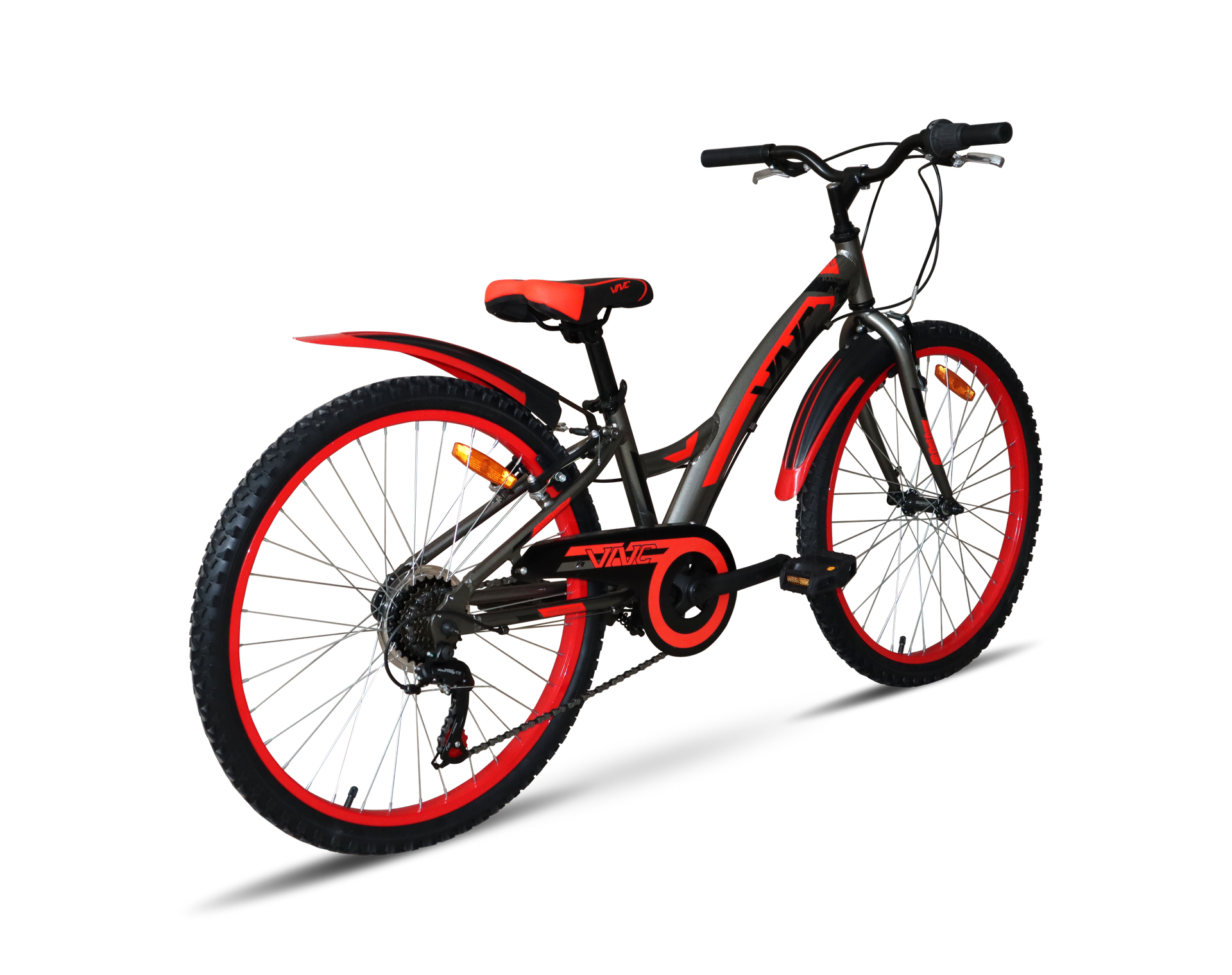

Ranger Sport
Ranger Sport
- Strong and lightweight alloy frame with lowered top center tube
- Shimano Tourney 7 speed rear derailleur with Shimano shifters
- Freewheel Shimano MF-TZ21 14-28T, 7 Speed
- 24" wheels size
Description
The VNC Ranger Sport teenage bike is made with an aluminum frame, which is the optimal material in terms of strength and lightness, which is used for middle-class bicycles. The geometry of the frame forms smooth lines, the central tube is lowered and reinforced by an additional tube in the area of the seatpost. This form is convenient for easy landing of short teenagers and jumping off the bike without unnecessary risk of injury.
Braking is provided by a simple and efficient V-brake system, which clamps the rim of the front and rear wheels with rubber brake pads. The brakes are actuated by compressing the two levers mounted on the handlebars of the bicycle.
The seven-speed bicycle transmission runs on Shimano Tourney branded components, which provide excellent performance and long service life. Shifting and selection of the necessary transfer is carried out by Shimano RevoShift shifters which precisely and easily work at rotation on a wheel.
The 24'' inch wheels are good for fast acceleration, rolling and braking.
Adjusting the height of the saddle and steering wheel allows you to choose the optimal, flat fit.
High-quality, lightweight components are productive and do not require serious adjustments.
Specification
| Frame | VNC Junior Wave Type, alloy |
| Fork | V-Class Rigid Junior, steel |
| Shifters | Shimano Tourney SL-RV200, 1x7 speed |
| Front derailleur | - |
| Rear derailleur | Shimano Tourney RD-TZ500-GS, 7 speed |
| Freewheel | Shimano MF-TZ21, 14-28t |
| Crankset | V-Class Zeta, 24T/34T/42T, alloy |
| Chain | KMC C7 |
| Bottom bracket | Sealed cartridge, BSA |
| Brakes | Logan, v-brake |
| Brake Levers | Logan, alloy |
| Hub (front) | V-Class Delta, quick release, steel |
| Hub (rear) | V-Class Delta, quick release, steel |
| Handlebars | V-Class Delta, steel |
| Stem | V-Class Sigma, alloy |
| Seatpost | V-Class Sigma, alloy |
| Saddle | V-Class MontRace JR |
| Headset | VNC M2, A-Headset, semi-integrated |
| Rims | V-Class Sigma, disc, double wall, alloy |
| Spokes | Stainless Steel |
| Tires | Compass MTB, 24"x1.95" |
| Pedals | V-Class FP-803, ball bearings |
| Grips | V-Class Revo MTB |
| Approx weights in kg | 10,3 |
| Color | Grey / Black / Red |
| Frame size | XXS4 |
* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
Size chart
Geometry
| XXS4 | ||
|---|---|---|
| A | bb center to top of seattube | 280 |
| B | top tube parallel | 470 |
| B* | top tube horizontal | 484 |
| C | chainstay | 415 |
| D | headtube length | 105 |
| E | head angle | 71 ° |
| F | seat angle | 73 ° |
| H | bb offset | 25 |
| K | wheelbase | 993 |
| G | seatpost diameter | 31,8 |
