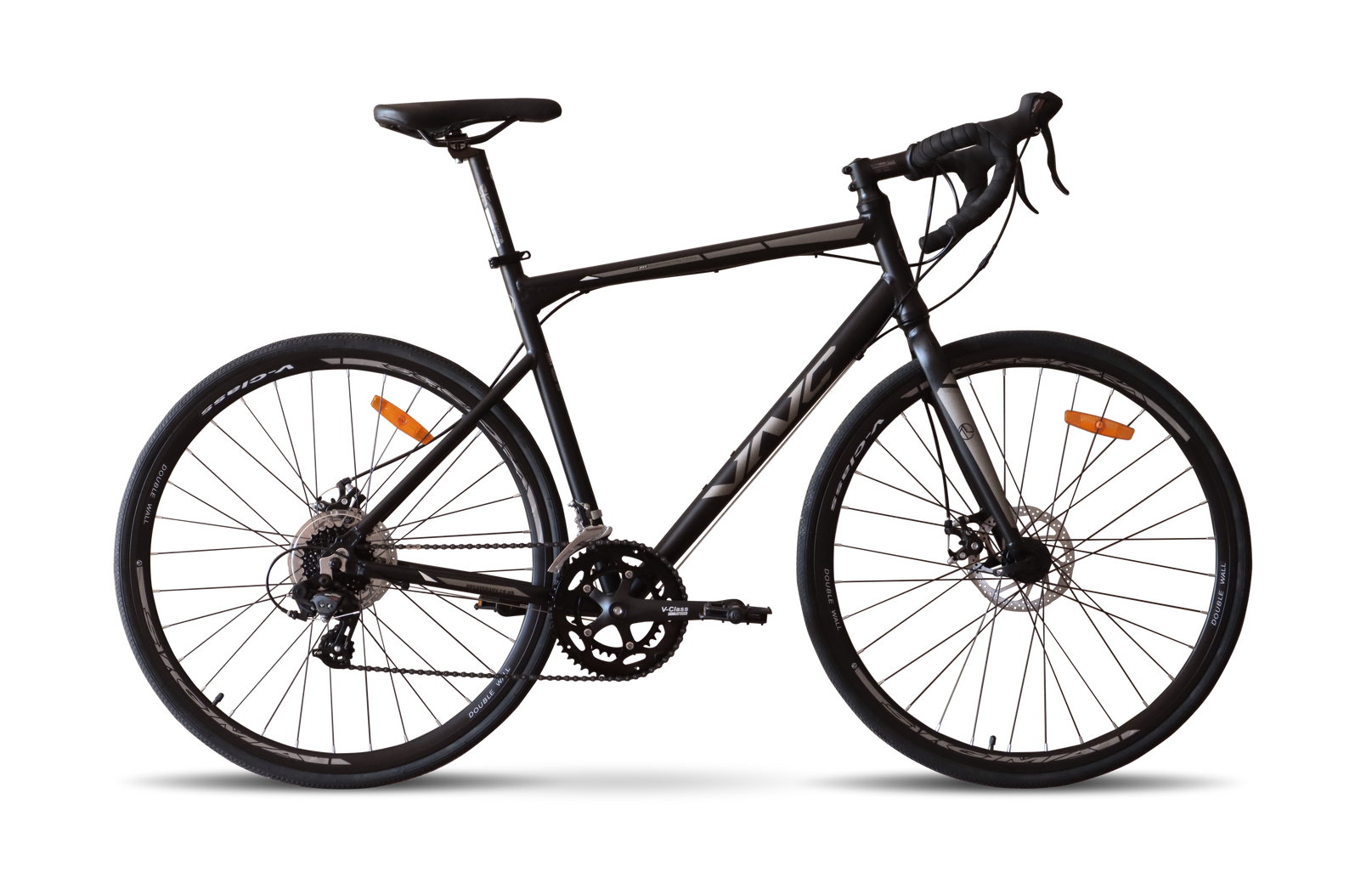

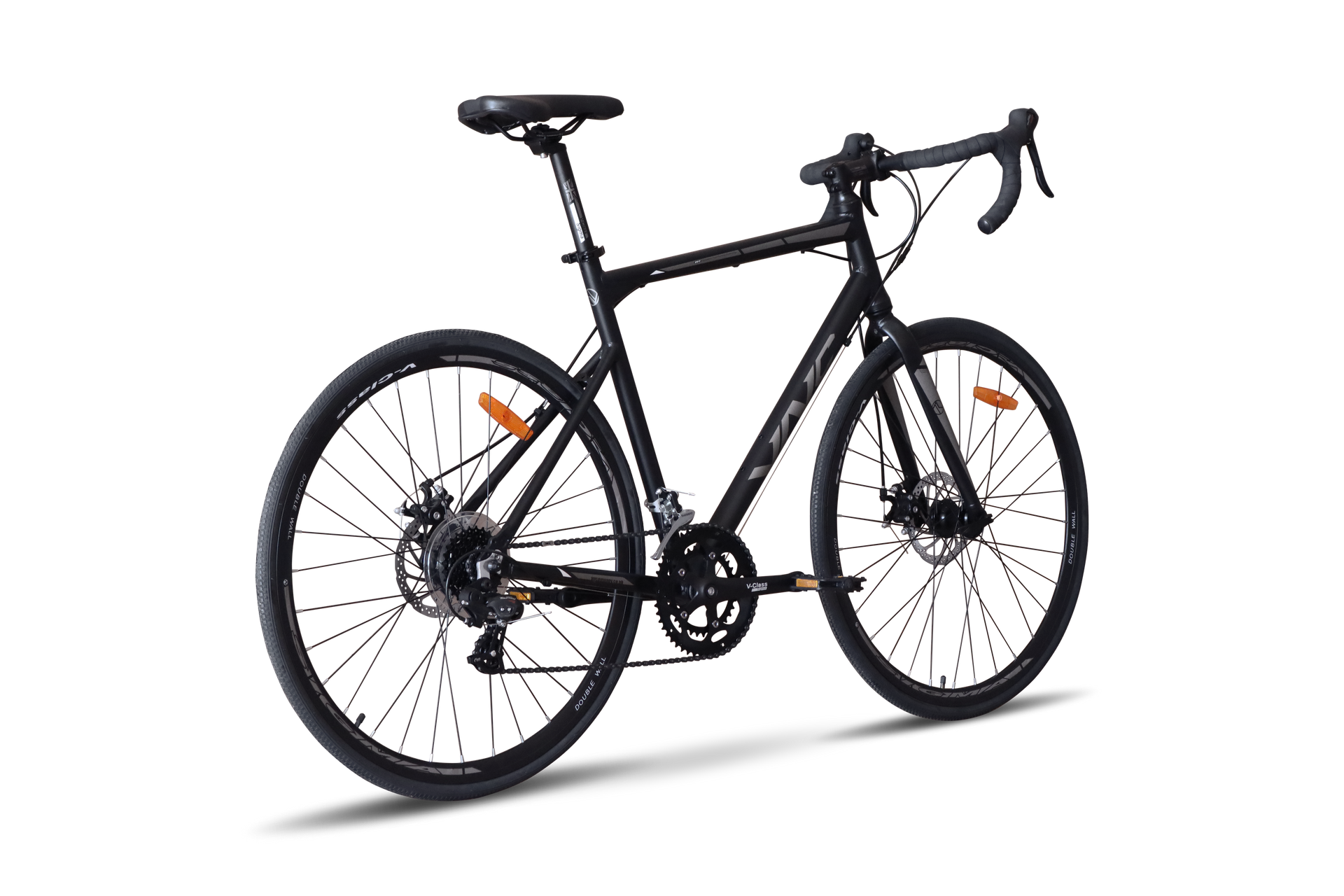

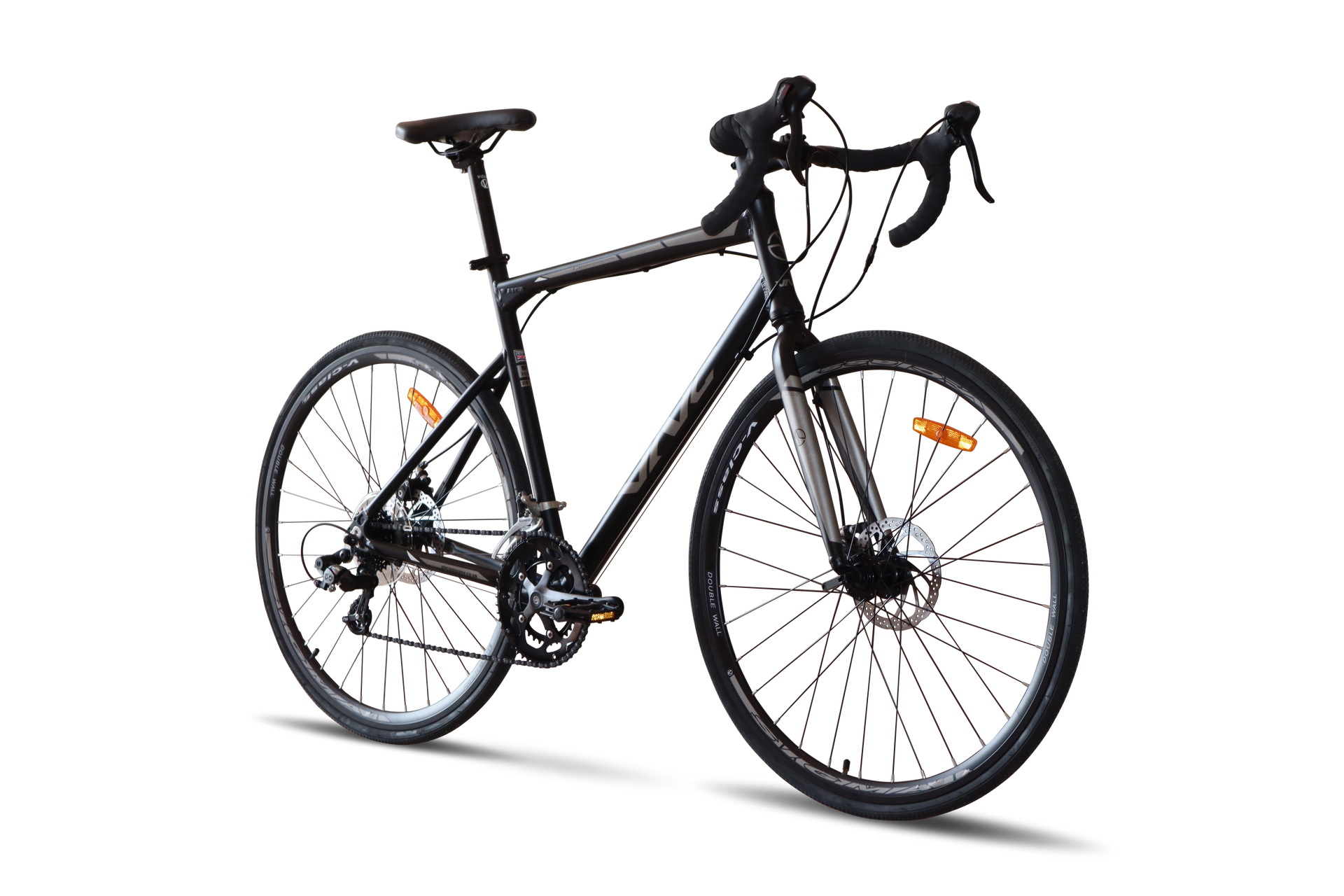

PrimeRacer A3 SH


  • Lightweight and durable aluminum racing frame
  • V-Class ProRace alloy rigid fork
  • Logan mechanical disc brakes
  • Shimano Tourney A70 7-speed rear and 2-speed front derailleurs with Tourney A70 Dual Control shifters
  • Index cassette, 11-34T

Description

VNC PrimeRacer A3 is designed for confident on-road riding while remaining versatile enough for mixed surfaces. It features a lightweight and durable aluminum gravel frame that is resistant to moisture and corrosion. The balanced frame geometry helps the rider handle uneven or demanding sections of the road with ease, while the strong, clean frame lines and increased clearance improve stability and control.


The V-Class ProRace aluminum rigid fork is optimized for variable riding conditions. Its rigid design does not absorb pedaling energy, allowing for efficient power transfer and reduced rider fatigue, especially on longer rides.


Reliable Logan mechanical disc brakes provide strong and consistent braking performance, even on steep descents and in challenging road conditions, ensuring safety and full control at all times.


The drivetrain offers 14 speeds (2×7) and is equipped with a Shimano A50 front derailleur and Shimano A70 rear derailleur. Gear shifting and braking are combined in Shimano A70 Dual Control levers, delivering smooth, precise, and intuitive operation.


The 7-speed 12–34T cassette provides a wide gear range, stable performance, and smooth chain engagement across various riding situations.


Compass Sport Race tires sized 700C × 28C offer efficient rolling and confident handling, performing well on both paved roads and light, loose surface sections.


The adjustable seat tube height allows the rider to fine-tune the riding position, which is especially important for comfort during long-distance rides and bike touring.


High-quality, lightweight components from a globally recognized manufacturer ensure precise, harmonious operation while remaining easy to maintain and reliable over long-term use.

Specification

Frame VNC ProRace, alloy
Fork V-Class Rigid ProRace, alloy
Shifters Shimano Tourney ST-A070 Dual Control, 2x7 speed
Front derailleur Shimano Tourney FD-A050, 2 speed
Rear derailleur Shimano Tourney RD-A070, 7 speed
Cassette S-Ride CS-M200, cassette type, index, 11-34T
Crankset V-Class Sigma Race, 36T/48T, alloy
Chain JX C50
Bottom bracket Sealed Cartridge
Brakes V-Class Zeta Race, mechanical disc brake, rotor: 160/160 mm
Brake Levers Shimano Tourney ST-A070, alloy
Hub (front) V-Class Sigma, disk, quick release, alloy
Hub (rear) V-Class Sigma, disk, quick release, alloy
Handlebars V-Class Sigma Race, alloy
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class RoadRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Sigma 700C, disc, double wall, alloy
Spokes Stainless Steel Black
Tires Compass Sport, 700Cx28C
Pedals V-Class FP-803, ball bearings
Grips V-Class Sport Race
Approx weights 12,1 kg
Color Black / Grey / White
Frame size 52cm / 57cm

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

L8
A bb center to top of seattube 548
B top tube parallel 547
B* top tube horizontal 564
C chainstay 420
D headtube length 180
E head angle 71,5 °
F seat angle 63,9 °
H bb offset 71
K wheelbase 1024
G seatpost diameter 31,8
