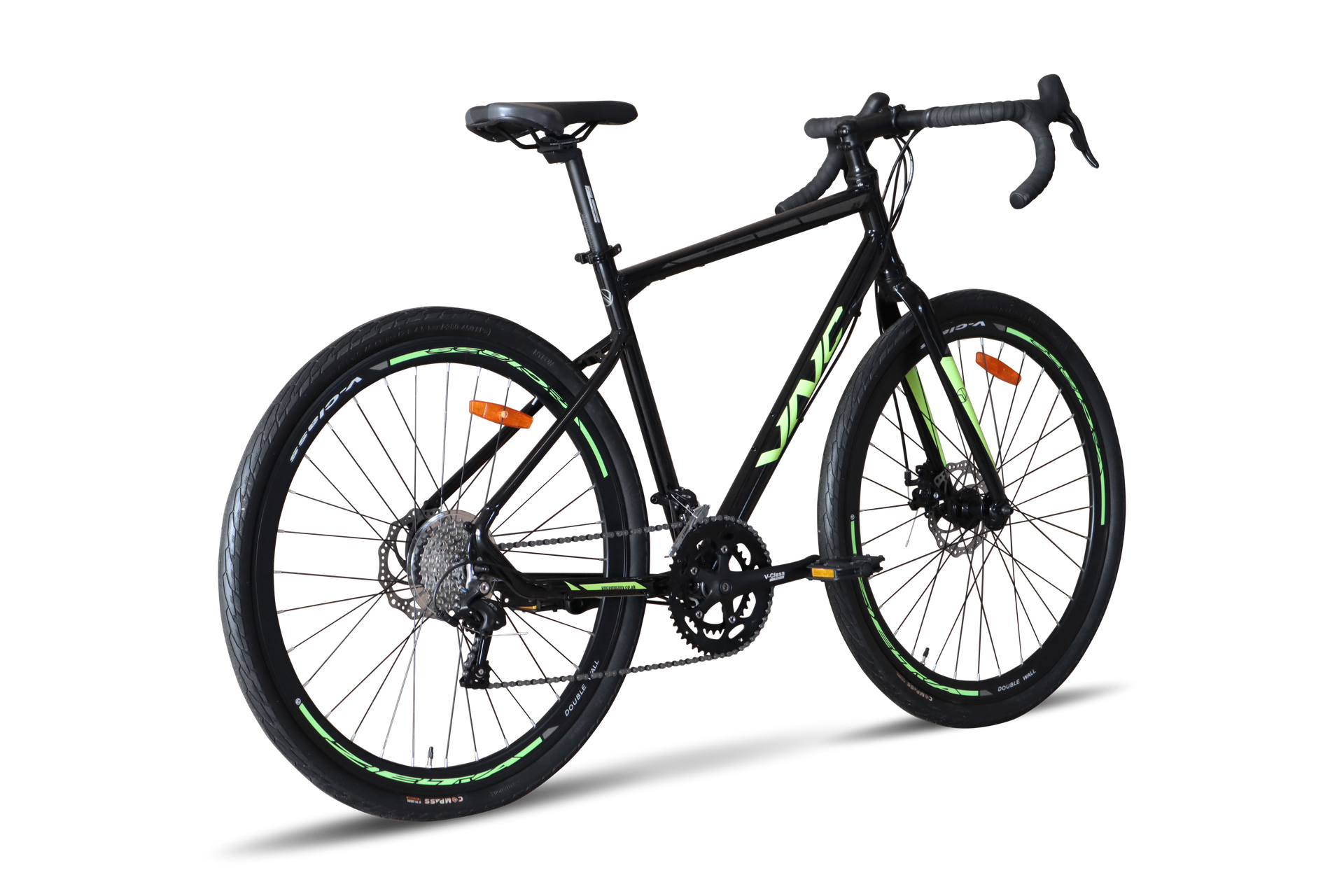

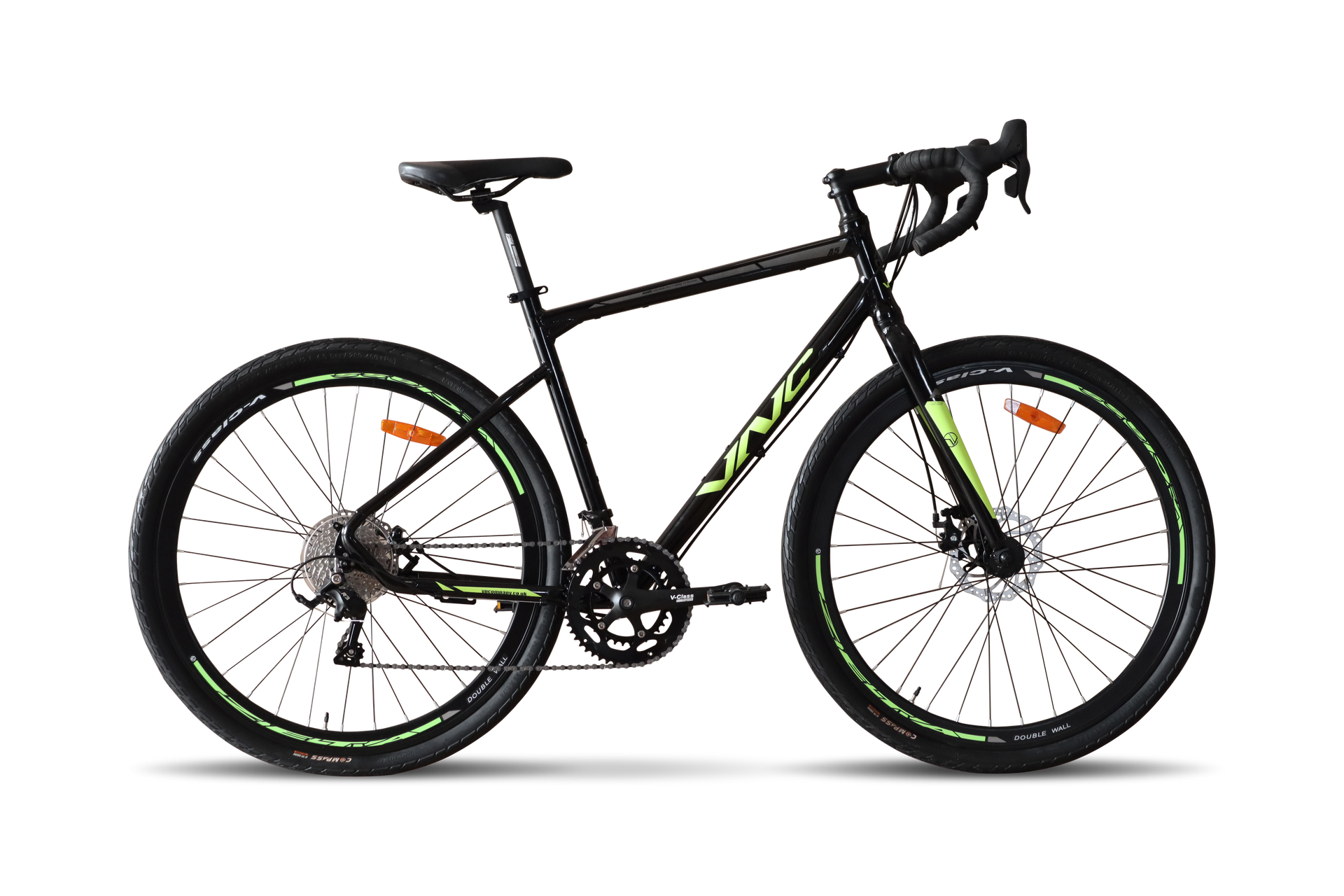

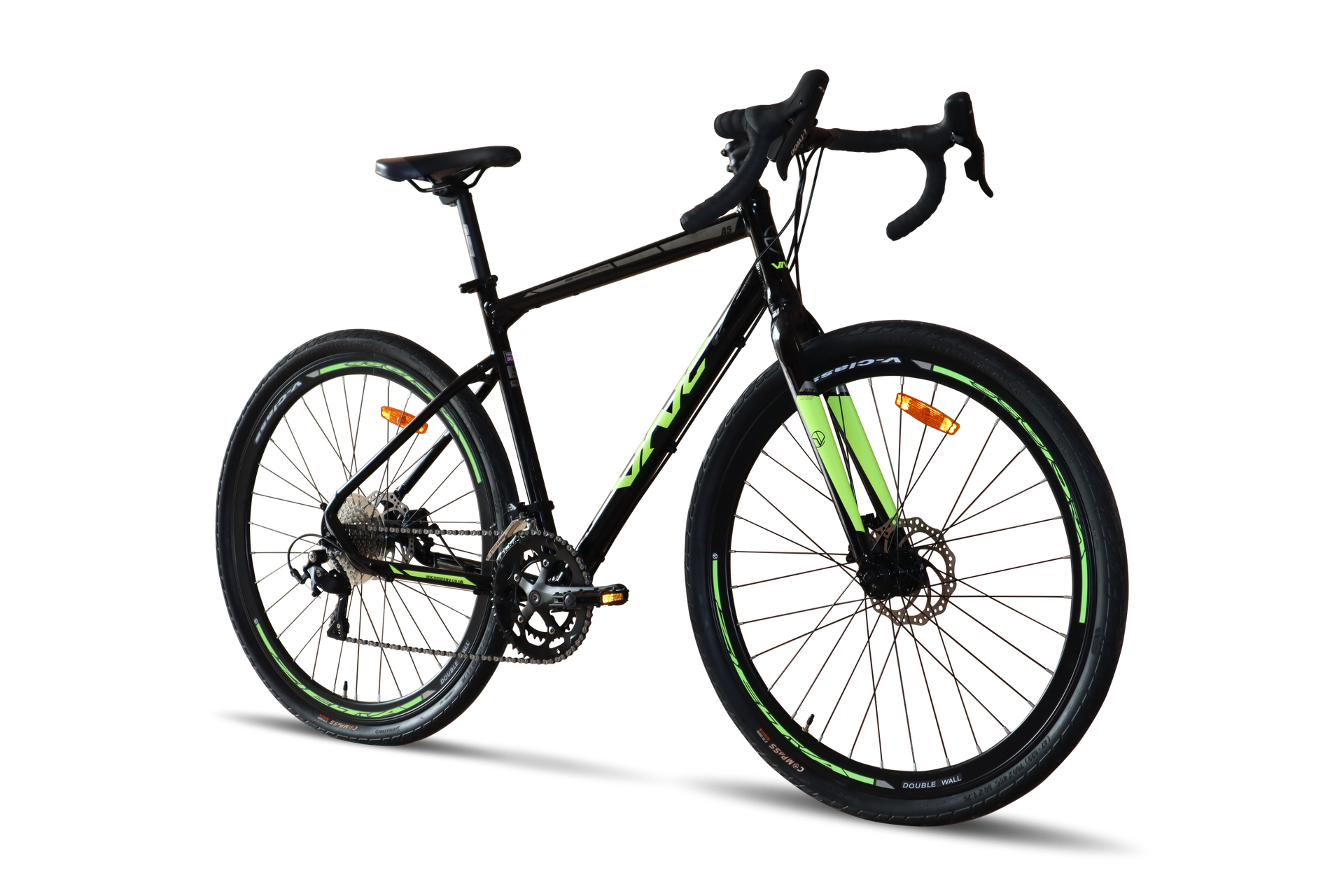

PrimeRacer A5


  • Strong and lightweight alloy frame
  • V-Class Zeta Race alloy rigid fork
  • Mechanical disc brakes with alloy levers
  • 2x8 speed reliable drive train
  • Index cassette, 11-28T

Description

VNC PrimeRacer A5 is designed for confident off-road and mixed-terrain riding. It features a lightweight yet durable aluminium gravel frame that is resistant to moisture and corrosion. The well-balanced frame geometry helps the rider confidently overcome difficult trail sections, while the rigid structure and increased frame clearance provide better control and improved passability on rough surfaces.


The V-Class Zeta Race alloy rigid fork is optimized for riding on variable terrain. Thanks to its rigid design, it does not absorb pedaling energy, allowing the rider to save effort and maintain efficient power transfer over long distances.


Mechanical disc brakes V-Class Zeta Race ensure reliable braking performance even on steep descents and in extreme riding conditions, providing consistent control and safety.


The drivetrain features a 2x8-speed L-TWOO R3 system with an 8-speed rear derailleur and a 2-speed front derailleur. The 11–28T 8-speed cassette delivers smooth, reliable shifting and a versatile gear range suitable for both climbs and fast sections.


Compass Metro Elite gravel tires sized 700Cx42C offer excellent traction and stability, performing confidently on loose, uneven, and challenging off-road surfaces.


The adjustable seat tube height allows the rider to fine-tune their riding position, which is especially important for comfort during long rides and bike tours.


High-quality, lightweight components from a globally recognized manufacturer work precisely and harmoniously, while remaining easy to maintain and reliable during long-term use.

Specification

Frame Race ProLite, alloy
Fork V-Class Zeta Race, rigid, alloy
Shifters L-TWOO R3 ST-R0806, dual control, 2x8 speed
Front derailleur L-TWOO R3 FD-R0801, 2-speed
Rear derailleur L-TWOO R3 RD-R0800, 8-speed
Cassette Skilful CS-G200, cassette type, index, 11-28T
Crankset V-Class Sigma, 34/50T, alloy
Chain JX C50
Bottom bracket Sealed Cartridge
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers L-TWOO R3, mechanical disc brake, alloy /
 Shimano, mechanical disc brake, alloy
Hub (front) V-Class Sigma, disk, quick release, alloy
Hub (rear) V-Class Sigma, disk, quick release, alloy
Handlebar V-Class Sigma Gravel, alloy
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class RoadRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Steel Black
Tires Compass Metro Elite, 700C x 42C
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro Race
Approx weights in kg 12,1
Color Black / Lime
Frame size 49cm / 53cm

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

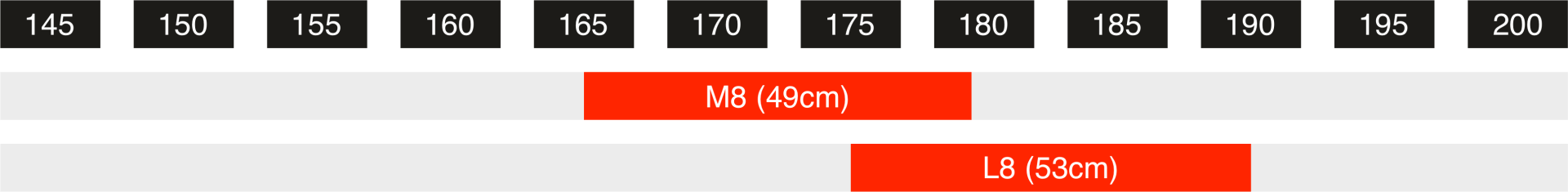

Size chart

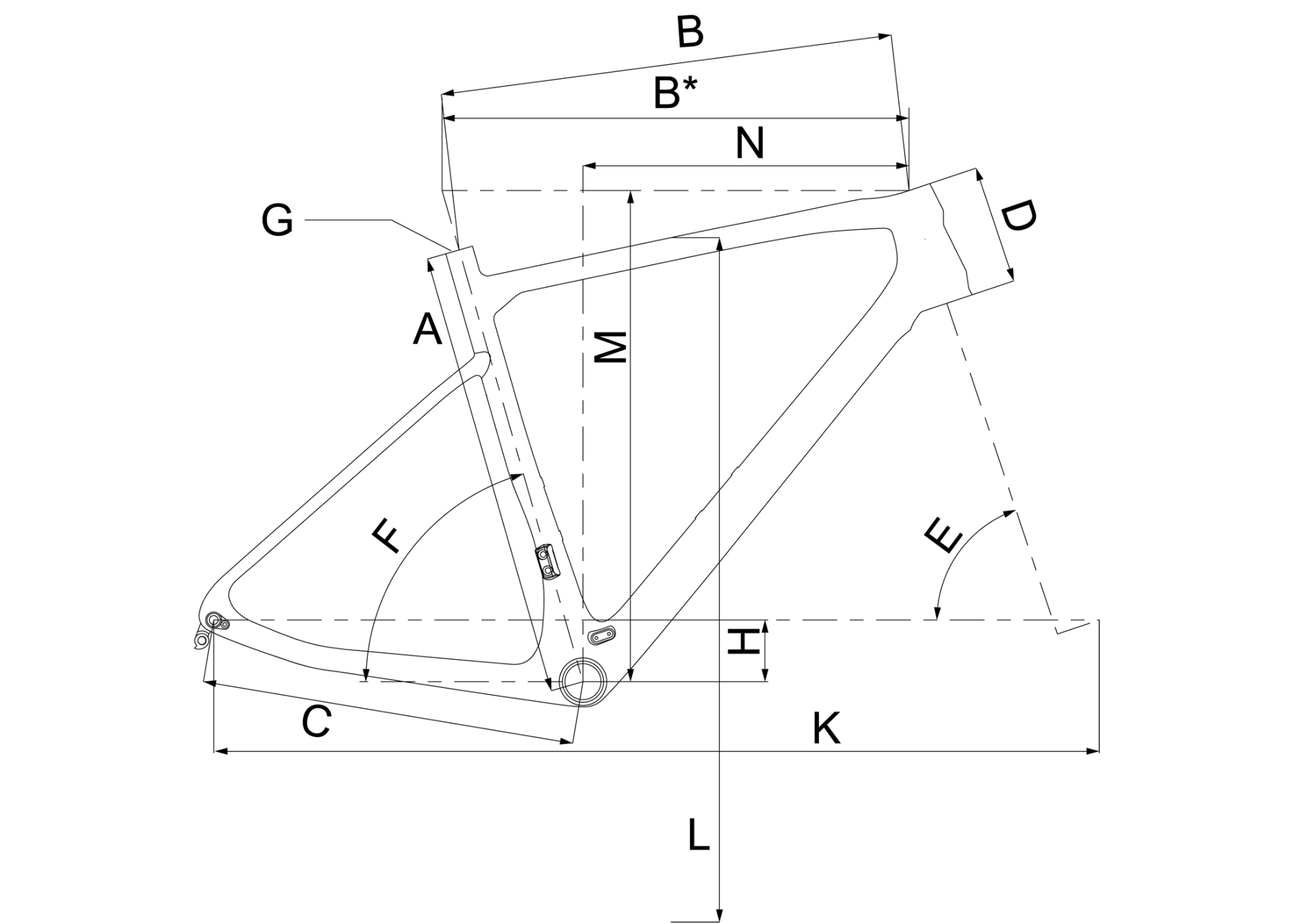

Geometry

M8 (49 cm) L8 (53 cm)
A bb center to top of seattube 490 520
B top tube parallel 515 540,4
B* top tube horizontal 535 560,5
C chainstay 450 450
D headtube length 135 165
E head angle 71,5 ° 71,5 °
F seat angle 73,5 ° 73,5 °
H bb offset 71 71
K wheelbase 1025 1051,5
G seatpost diameter 31,8 31,8
