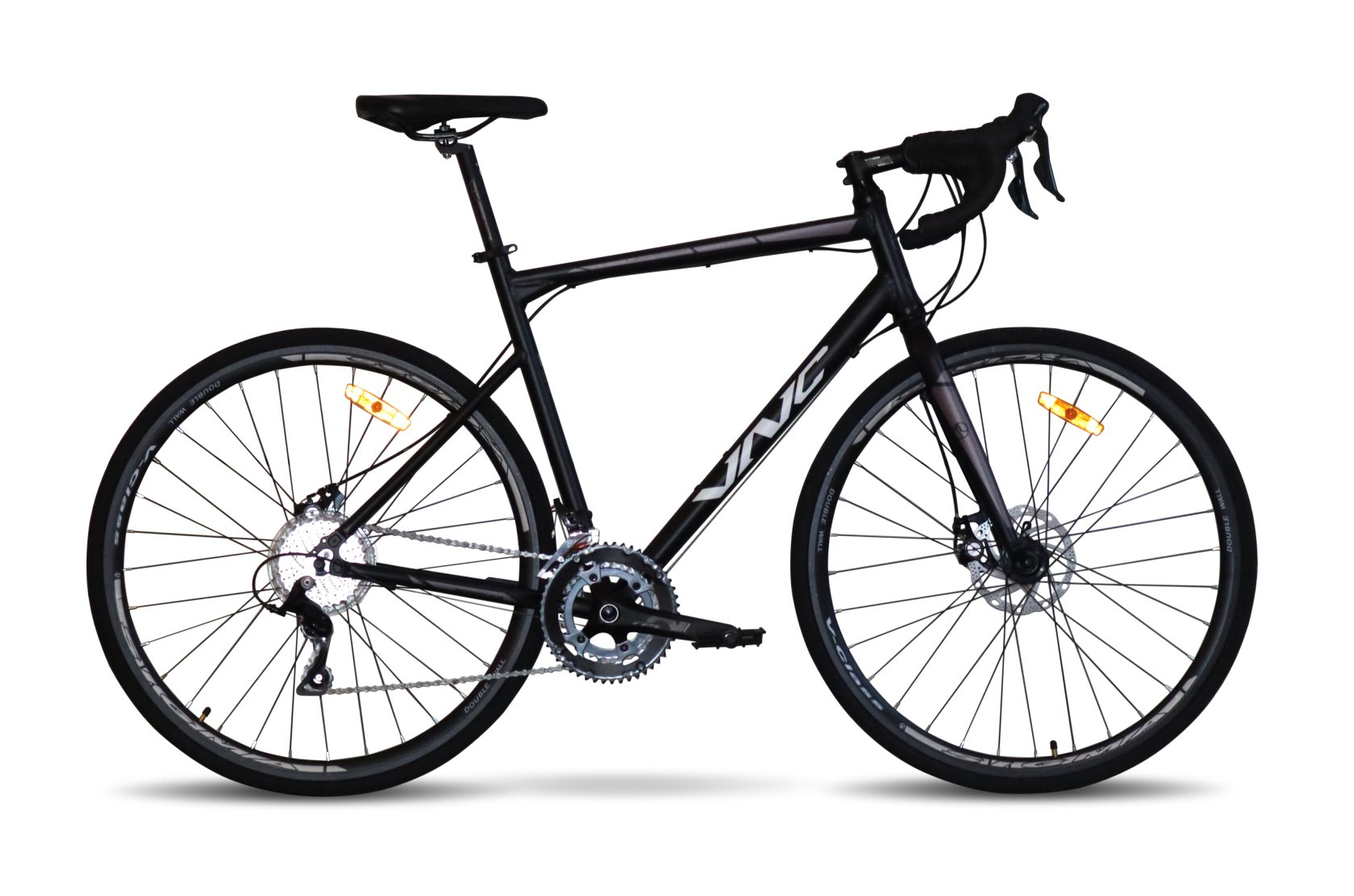

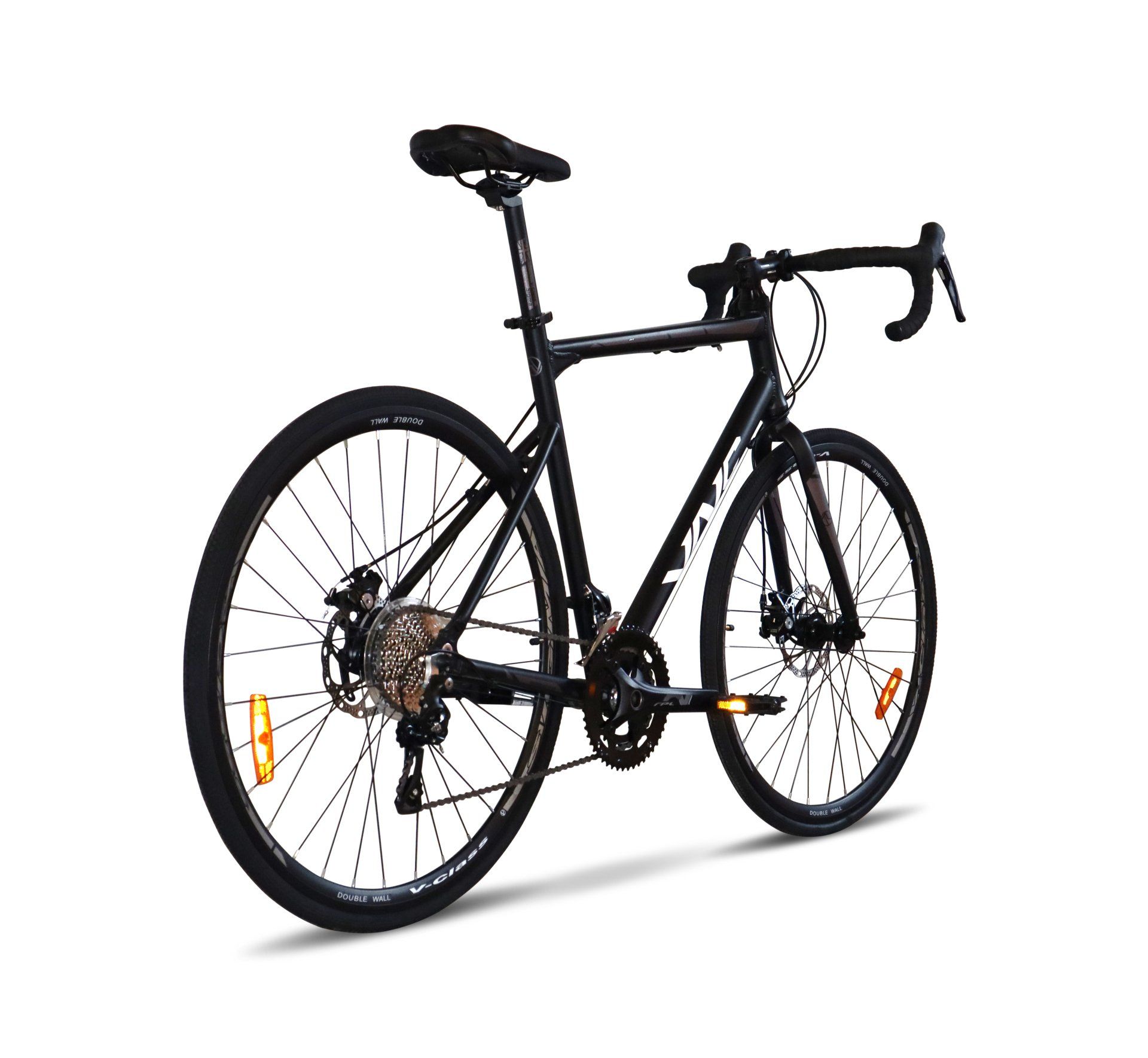

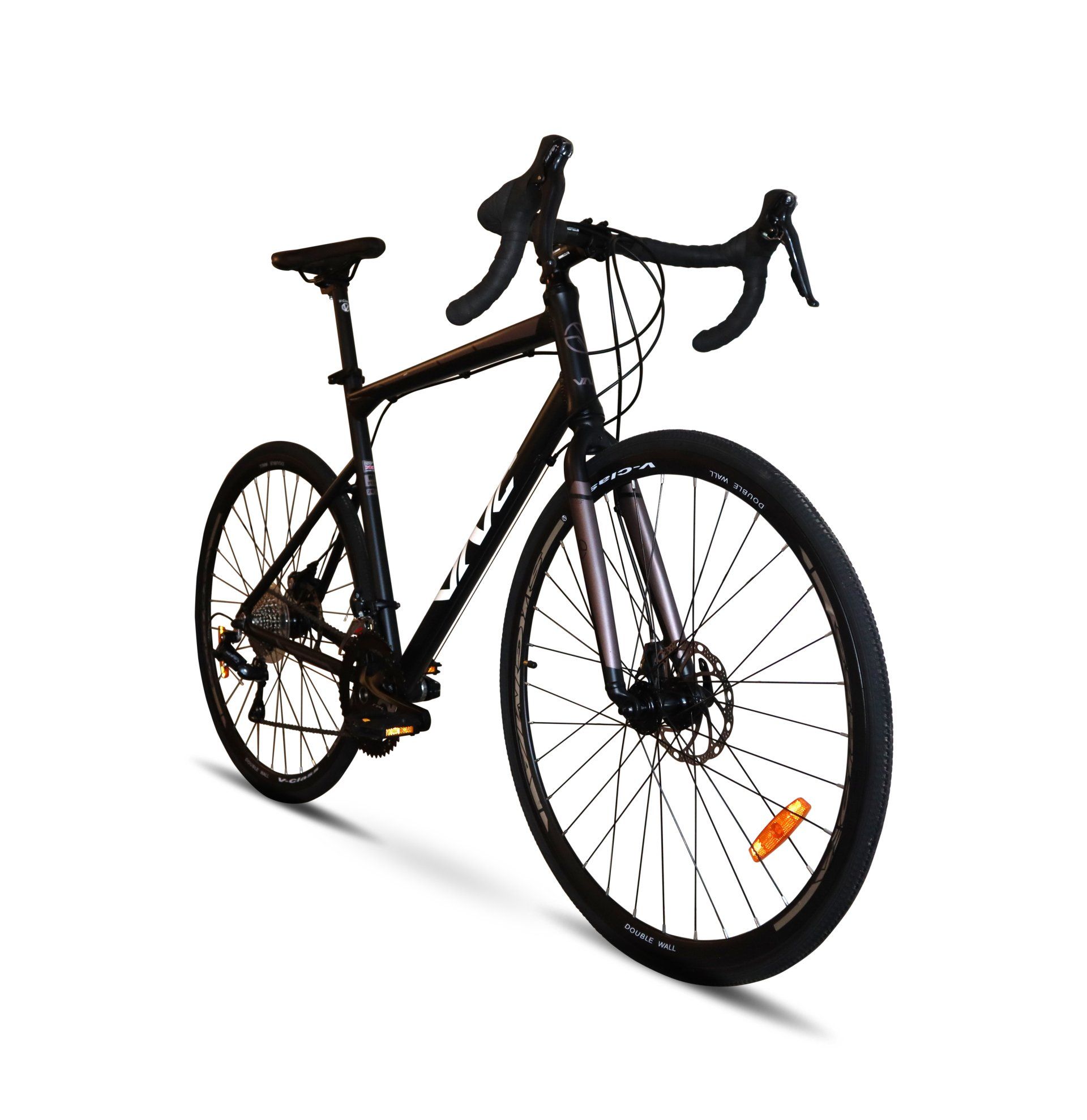

PrimeRacer A7

  • Lightweight and durable aluminum racing frame
  • V-Class ProRace alloy rigid fork
  • Logan mechanical disc brakes
  • Shimano Sora 9-speed rear derailleur and 2-speed front derailleur  with Shimano Sora Dual Control shifters
  • Cassette Skilful CS-M320 11-25T 9 Speed
  • 700C wheel size

Description

The VNC PrimeRacer A7 bike is designed specifically for off-road riding with a lightweight, durable aluminum racing frame that resists moisture and corrosion. The geometry of the profile is balanced for tricky road sections with heavy pipes and a wide lumen triangle.


The rigid, rigid aluminum V-Class ProRace fork is positioned for more efficient traversing of unpaved road surfaces, as without rolling it saves the rider as much energy as possible when pedaling hard.


The Logan mechanical disc brake system allows full control of movement in steep descents and dangerous turns, which clamp the wheel rotors with special pads.


The bike transmission includes 18 speeds (2x9). The Shimano Sora front and rear derailleurs are controlled by Shimano Sora R3000 Dual Control monoblocks, which integrate shifting and braking functions.


The Skilful CS-M320 11-25T 9-speed cassette has a high performance and a long service life.


Compass Saturn Ring SkinWall tires with a radius of 700Сх28С are specially designed for difficult roads.


The height-adjustable seat tube allows you to choose the optimal fit for the rider, which is important when driving for a long time on rough terrain.


Lightweight and efficient bike components are stable in operation and have a long service life.

Specification

Frame VNC Gravel ProLite, alloy
Fork V-Class Rigid ProRace, alloy
Shifters Shimano Sora ST-R3000 Dual Control, 2x9 speed
Front derailleur Shimano Sora FD-R3000, 2 speed
Rear derailleur Shimano Sora RD-R3000, 9 speed
Cassette Skilful CS-M320, 11-25t
Crankset ProWheel RPL-421-F-TT, 34T/50T, alloy
Chain KMC Z99
Bottom bracket Sealed Cartridge
Brakes Logan, mechanical disc brake, rotor: 160/160 mm
Brake Levers Shimano ST-R3000, alloy
Hub (front) V-Class Sigma, disk, quick release, alloy
Hub (rear) V-Class Sigma, disk, quick release, alloy
Handlebars V-Class Sigma Race, alloy
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class RoadRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Sigma 700C, disc, double wall, alloy
Spokes Stainless Steel Black
Tires Compass Sport, 700Cx28C
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro Race
Approx weights in kg 11,9
Color Black / Dark Grey / White
Frame size 52cm / 57cm

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

L8
A bb center to top of seattube 548
B top tube parallel 547
B* top tube horizontal 564
C chainstay 420
D headtube length 180
E head angle 71,5 °
F seat angle 63,9 °
H bb offset 71
K wheelbase 1024
G seatpost diameter 31,8
