MontRider A5
- Strong and lightweight alloy frame
- Alloy suspension fork with mechanical lock-out
- Hydraulic disc brakes with alloy levers
- 3x8 speed reliable drive train
- Index cassette, 11-32T
Description

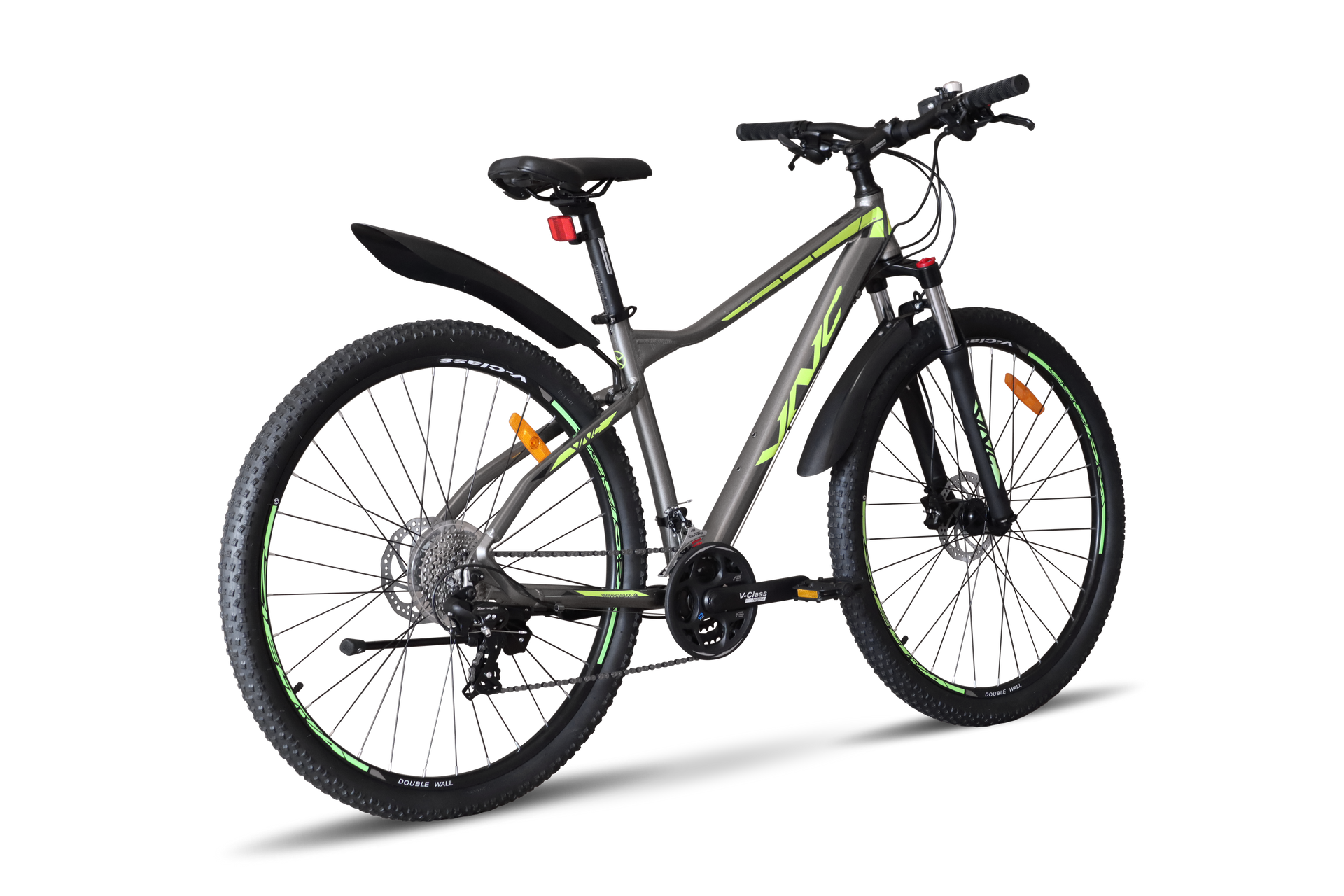

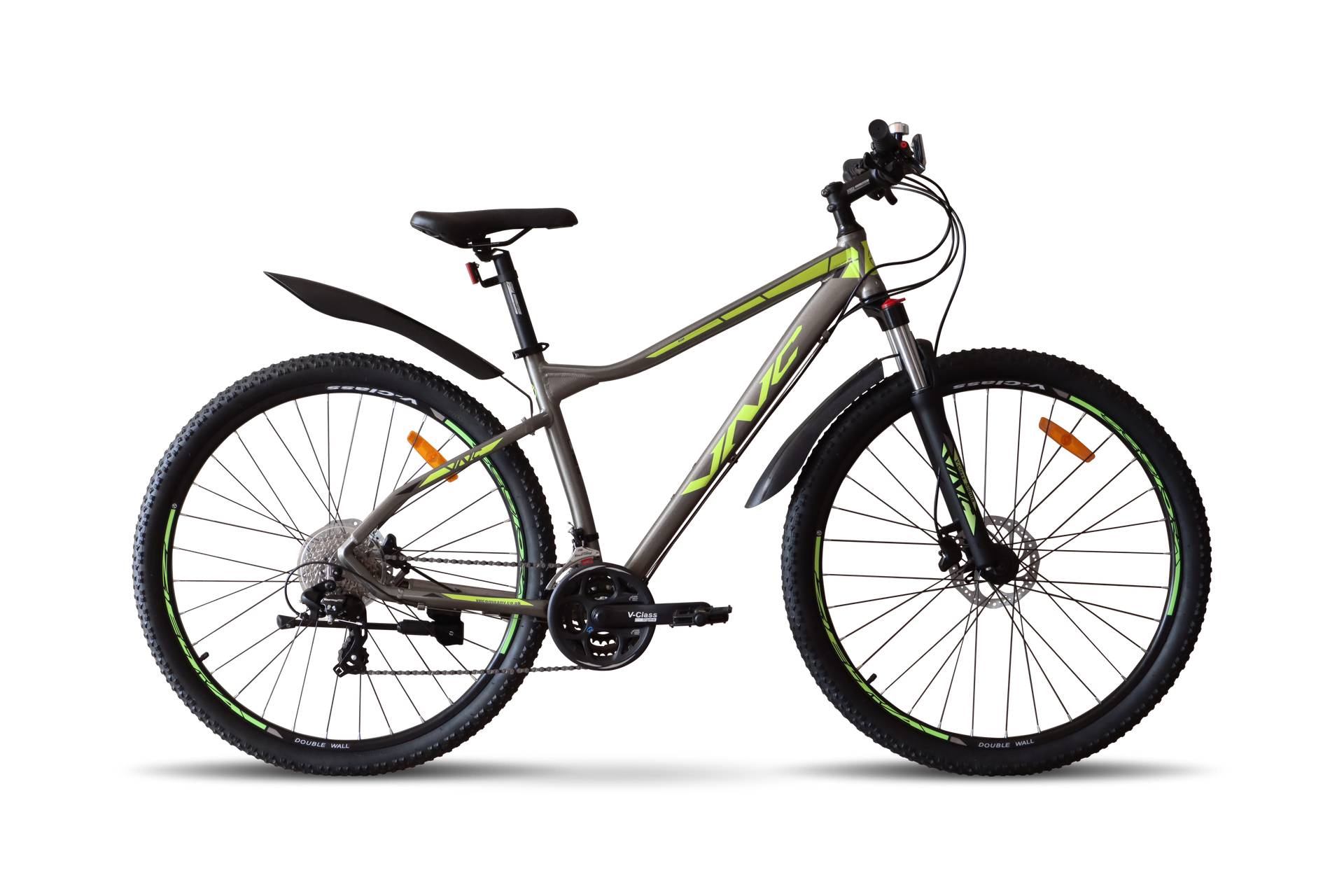

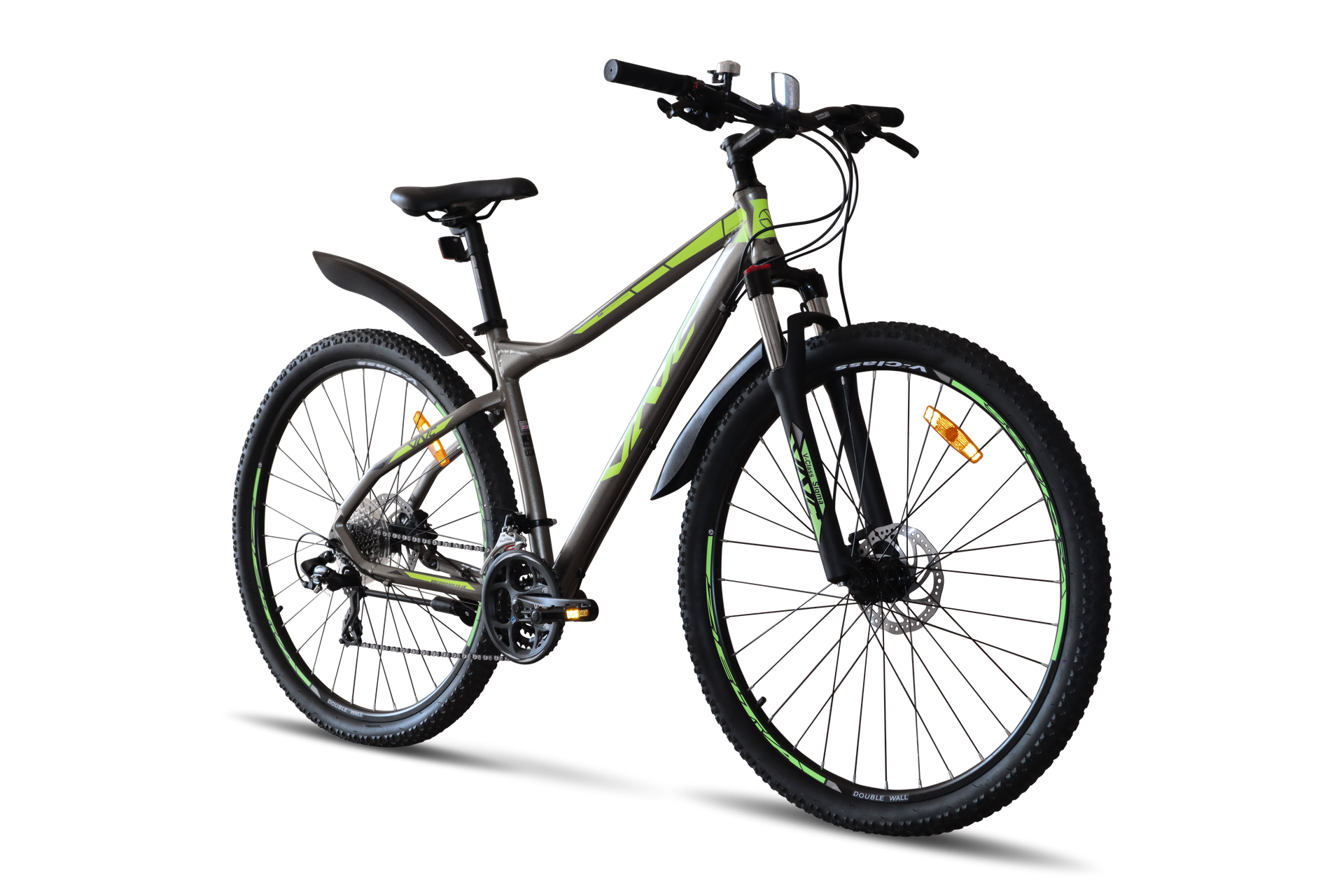

VNC MontRider A5 is a mountain bike built around a lightweight yet durable aluminum frame that is resistant to moisture and corrosion. The sloped top tube creates a low-profile geometry with a compact rear triangle, making mounting, dismounting, and quick exits from the bike easier and more comfortable.
The bike is equipped with a V-Class Sigma MLO suspension fork, which effectively absorbs impacts and vibrations, providing confident handling on bumpy and uneven trails, especially in rough terrain.
Reliable V-Class Sigma hydraulic disc brakes deliver immediate and consistent stopping power. When the brake levers are applied, the pads quickly clamp onto the front and rear rotors, ensuring precise control and safety in demanding riding conditions.
The drivetrain features a 24-speed (3×8) setup based on Shimano Tourney TX components, offering a wide gear range for efficient riding across various types of terrain. Depending on the bike specification, V-Class or Shimano shifters are mounted on the handlebars, providing smooth and accurate gear changes.
An 8-speed 11–32T cassette ensures stable performance, smooth shifting, and reliable chain engagement.
The bike is available with 27.5-inch or 29-inch wheels, both options delivering quick acceleration, good rolling efficiency, and stable speed maintenance.
The adjustable seat post height allows the rider to easily find a comfortable and efficient riding position.
All components are lightweight, high-quality, and sourced from leading global manufacturers. They are reliable, easy to maintain, and designed for long service life.
Specification
| Frame | MTB ProLite, alloy |
| Fork | V-Class Sigma MLO, coil, mechanical lock-out, 100mm, alloy |
| Shifters | Shimano Tourney SL-TX800, index, 3x8 speed |
| Front derailleur | Shimano Tourney FD-TY300, index, 3 speed |
| Rear derailleur | Shimano Tourney RD-TX800, index, 8 speed |
| Cassette | Skilful CS-M220, cassette type, index, 11-32T |
| Crankset | V-Class Sigma, 24T/34T/42T, alloy |
| Chain | JX C50 |
| Bottom bracket | Sealed Cartridge BSA |
| Brakes | V-Class Sigma, hydraulic disc brake, rotor: 160/160 mm / Tektro HD-M275, hydraulic |
| Brake Levers | V-Class Sigma, hydraulic disc brake, alloy / Tektro HD-M275, hydraulic disc brake, alloy |
| Hub (front) | V-Class Sigma, disk, quick release, alloy |
| Hub (rear) | V-Class Sigma, disk, quick release, alloy |
| Handlebar | V-Class Delta, steel |
| Stem | V-Class Zeta, alloy |
| Seatpost | V-Class Sigma, alloy |
| Saddle | V-Class MontRace |
| Headset | VNC M2, A-Headset, semi-integrated |
| Rims | V-Class Zeta, disc, double wall, alloy |
| Spokes | Steel Black |
| Tires | MTB Pro, 27,5’’(29’’)x2.35’’ |
| Pedals | V-Class FP-803, ball bearings |
| Grips | V-Class Pro MTB |
| Approx weight | 14.8 kg (kick stand & mudguards not included) |
| Color | Grey / Lime / Black |
| Frame size | XS7 / S7 / M9 / L9 / XL9 |
* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
Geometry
| XS7 | S7 | M9 | L9 | XL9 | ||
|---|---|---|---|---|---|---|
| A | bb center to top of seattube | 360 | 400 | 430 | 470 | 510 |
| B | top tube parallel | 567,5 | 562,7 | 582 | 579,2 | 593,4 |
| B* | top tube horizontal | 451 | 586 | 605 | 610 | 620,1 |
| C | chainstay | 445 | 445 | 455 | 455 | 455 |
| D | headtube length | 110 | 110 | 110 | 110 | 110 |
| E | head angle | 70 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| F | seat angle | 73 ° | 73 ° | 79 ° | 79 ° | 78,5 ° |
| H | bb offset | 42 | 42 | 75 | 75 | 75 |
| K | wheelbase | 1083 | 1086 | 1116 | 1119 | 1131 |
| G | seatpost diameter | 34,9 | 34,9 | 34,9 | 34,9 | 34,9 |
