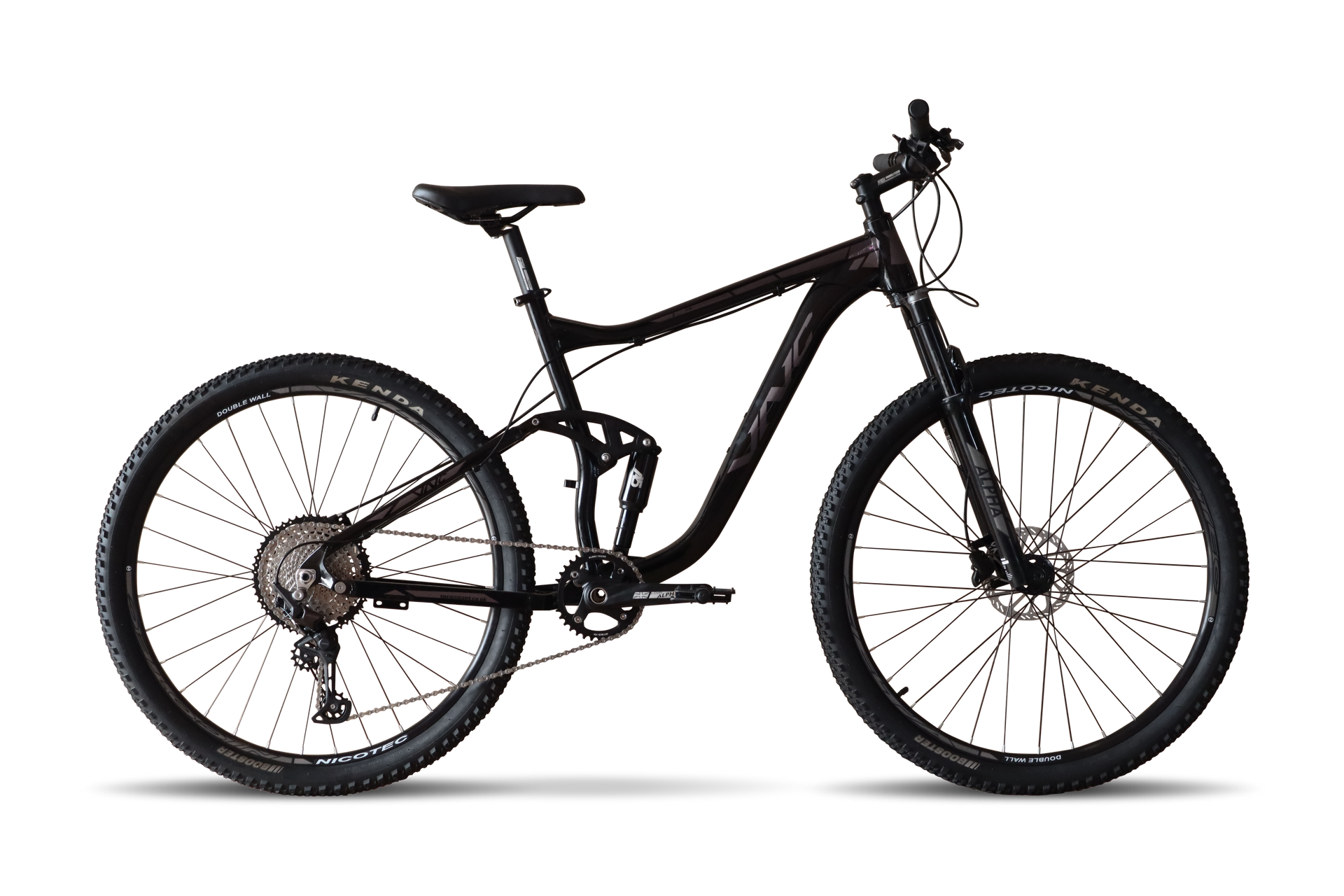

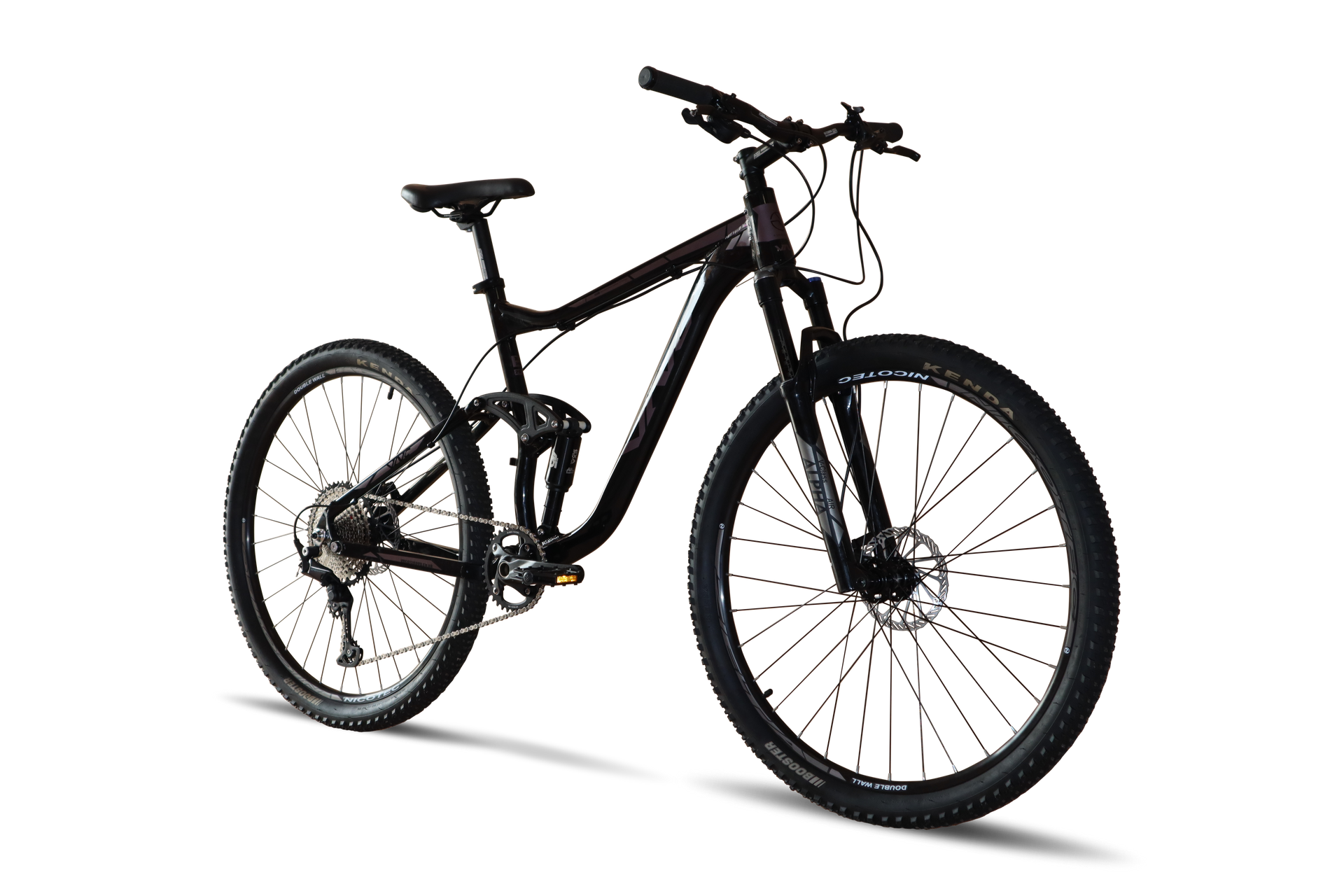

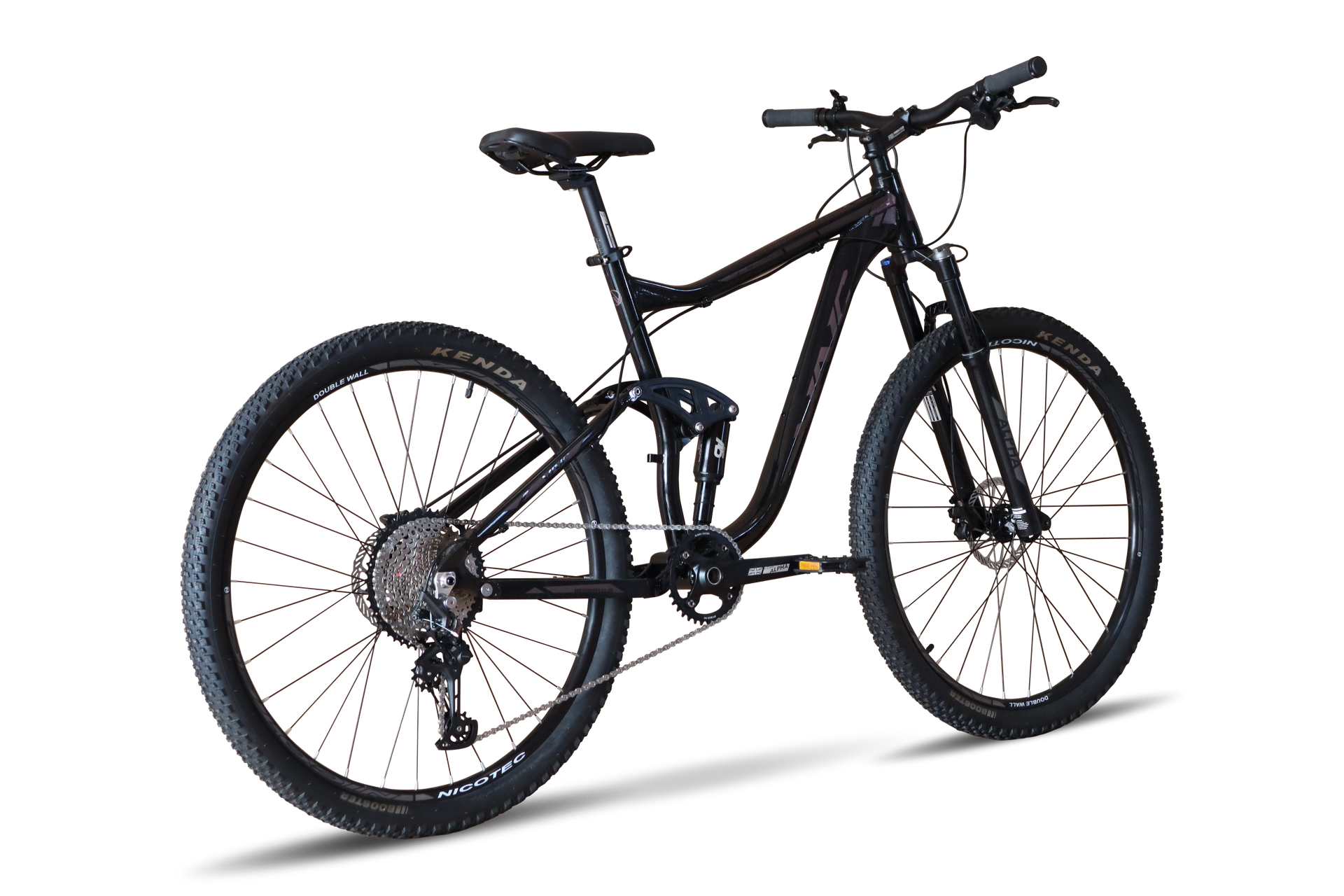

HighRider A11


  • Strong and durable alloy frame with Pro-Link air system
  • Alloy air suspension fork with hydraulic lock-out with remote lock
  • Hydraulic disc brakes with alloy levers
  • 1x12 speed reliable drive train
  • Index cassette, 11-50T

Description

VNC HighRider A11 is a full-suspension mountain bike built around a lightweight yet durable alloy frame with the Pro-Link suspension system. The frame is resistant to moisture and corrosion, making it suitable for long-term use in demanding conditions. The sloped top tube creates a low, rider-friendly geometry with a compact rear triangle, making mounting, dismounting, and jumping off the bike easier and more comfortable.


The bike is equipped with a V-Class Alpha HLO-RL alloy air suspension fork featuring a hydraulic lockout with remote control. Together with the advanced KS R5-RE air rear shock, the suspension system effectively absorbs bumps and vibrations, providing smooth and controlled riding on rough, uneven terrain.


Powerful and reliable Shimano MT200 hydraulic disc brakes deliver immediate and confident stopping power. When the brake levers are engaged, the pads quickly clamp the rotors on both wheels, ensuring precise control and safety even in challenging riding conditions.


The drivetrain features a 1×12-speed setup built with Shimano Deore components, offering a wide gear range suitable for climbs, descents, and fast trail sections. Shimano Deore shifters, conveniently positioned on the handlebars, provide smooth and accurate gear changes.


A 12-speed 11–50T cassette ensures efficient power transfer, stable chain engagement, and reliable performance across varied terrain.


The bike rolls on 29-inch wheels fitted with wide Kenda Booster tires, which deliver quick acceleration, excellent grip, and strong momentum retention at speed.


The adjustable seat post height allows the rider to easily find a comfortable and efficient riding position.


All components are lightweight, high-quality, and sourced from leading global manufacturers. They are reliable, easy to maintain, and designed for long service life.

Specification

Frame MTB Full-Suspension with Pro-Link system, alloy
Fork V-Class Alpha AIR HLO-RL, AIR, hyd. lock-out, remote lock, 120mm, alloy
Rear shock KS A5-RE Solo Air, air, 47mm, alloy
Shifters Shimano Deore SL-M6100-R, index, 1x12 speed
Front derailleur N / A
Rear derailleur Shimano Deore RD-M6100-SGS, index, 12 speed
Cassette S-Ride CS-M500, cassette type, index, 11-50T
Crankset V-Class Alpha, 36T, alloy
Chain KMC X12
Bottom bracket Pressed B. B.
Brakes Shimano MT200, hydraulic disc brake, rotor: 160/160 mm
Brake Levers Shimano MT200, hydraulic disc brake, alloy
Hub (front) V-Class Alpha Pro, disk, bearings, thru-axle, alloy
Hub (rear) V-Class Alpha Pro, disk, bearings, thru-axle, alloy
Handlebar V-Class Sigma, alloy
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel Black
Tires Kenda Booster, 29x2.40
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights 16 kg (kick stand & mudguards not included)
Color Black / Dark Grey
Frame size M7 / L9 / XL9

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

M7 L9
A bb center to top of seattube 430 470
B top tube parallel 557 574
B* top tube horizontal 605 610
C chainstay 485 500
D headtube length 120 120
E head angle 71 ° 71 °
F seat angle 79 ° 79 °
H bb offset 30 45
K wheelbase 1118,3 1146,4
G seatpost diameter 31,8 31,8
